Shimano Black Shimano Tiagra RS470 rear hub 2024
1/ 2Image
1/ 2Image
2/ 2Image

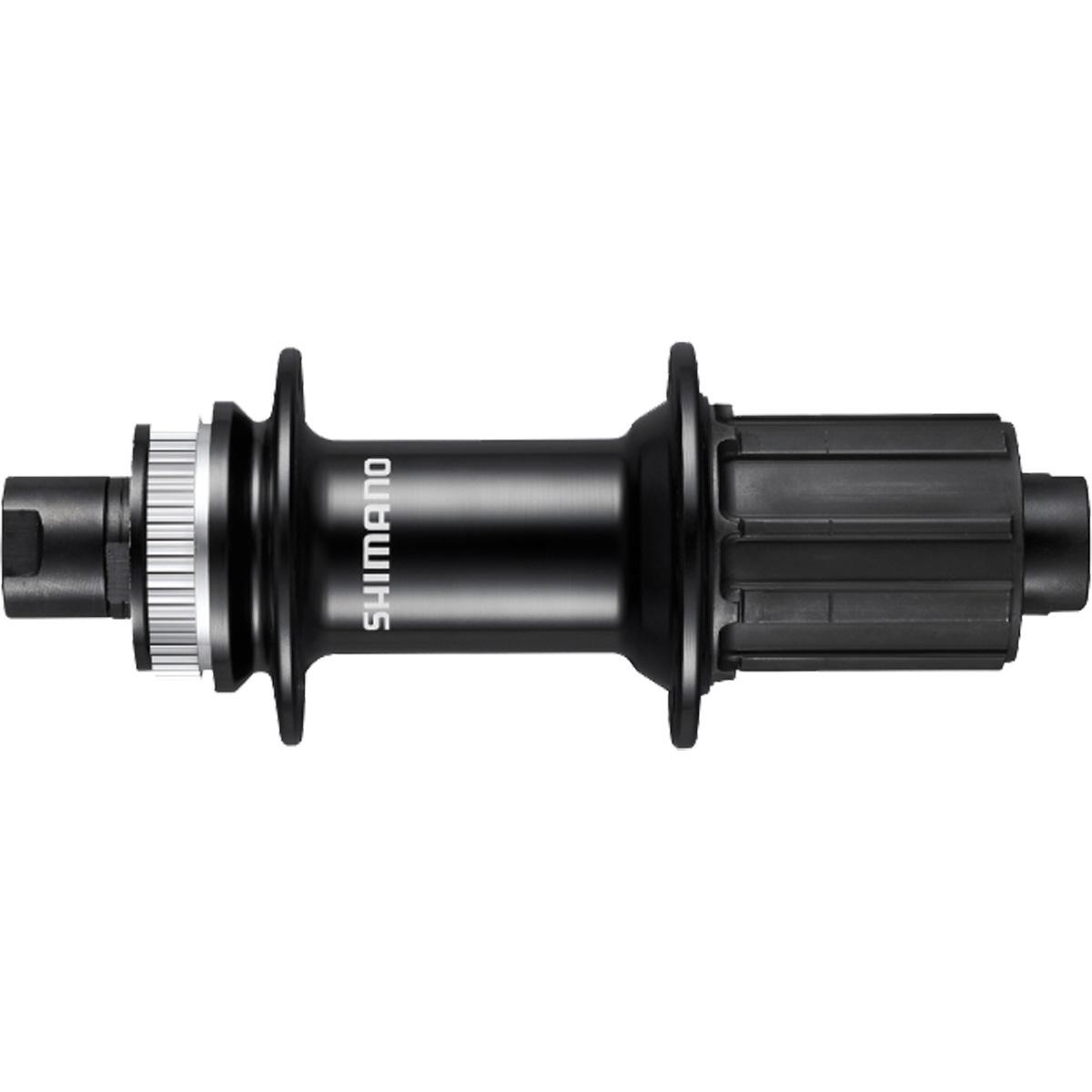

Rear freehub. Disc brake with Centerlock mount. 142x12 mm E-THRU Axle. 10/11-speed. Spoke holes: 32. For E-THRU disc brake compatible bicycles, the RS470 FREEHUB blends good looks and high quality performance.
- High quality sealing cup and cone bearing
- Internal grease sleeve
- O.L.D.: 142 mm
- Axle fixing method: 12 mm E-THRU
- Thru axle (length x inner diameter: 142 x 12 mm
- Flange distance: 55.7 mm
- Offset: 7.45 mm
- P.C.D. left / right: 44/45 mm
- Flange diameter left / right: 52.8/53.8 mm
Article nr.:
EFHRS470BL
