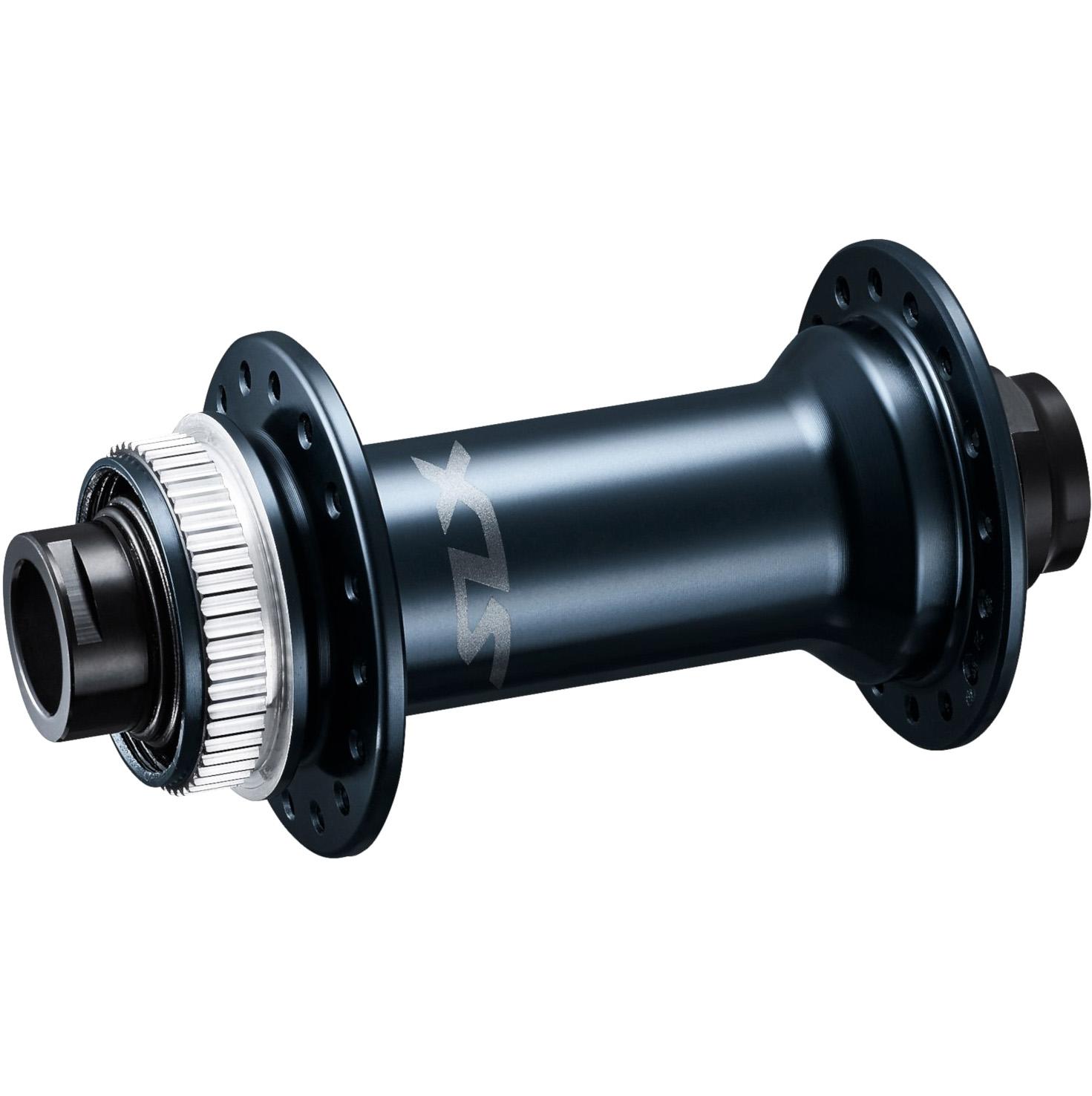

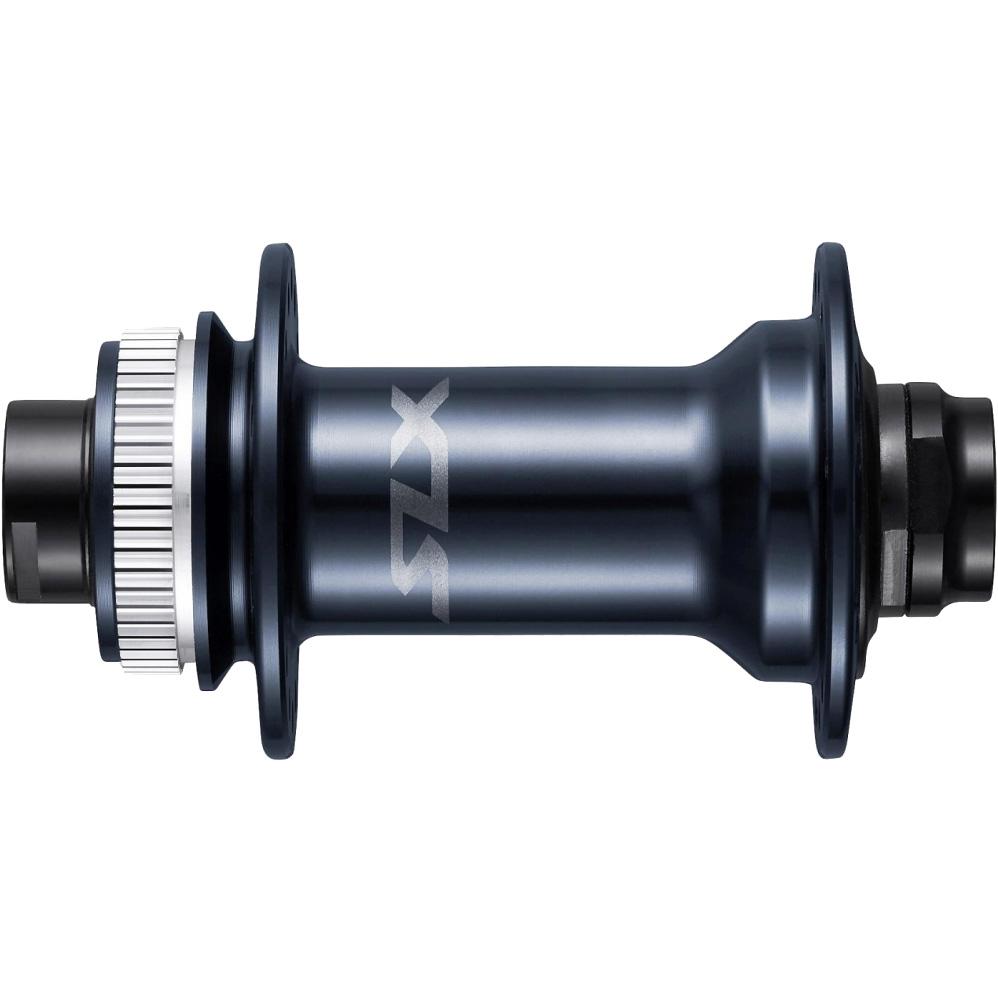

Shimano Black Shimano SLX M7110 Disc CenterLock Boost front hub
1/ 3Image
1/ 3Image
2/ 3Image
3/ 3Image
Front Hub. Brake type: CENTER LOCK disc brake. Spoke holes: 32. 110x15 mm E-THRU Axle. With simple setup and reliable trail performance, the SLX front hub is perfect for custom MTB wheel builds.
- Easy disc brake rotor installation with spline mount and lock ring
- Toolless 15 mm skewer system is stiff and lightweight
- E-THRU axle
- Labyrinth & Contact Sealing
- O.L.D.: 110 mm
- Average weight: 147
- Axle fixing method: 15 mm E-THRU
- Flange diameter Left/Right: 52.8 mm
- Flange distance: 70.2 mm
- Offset: 5.7 mm
- P.C.D. left / right: 44/44 mm
- Thru Axle (Length x Inner diameter): 110 x 15 mm
- Flange diameter: 52.8 mm
Article nr.:
EHBM7110BBX
