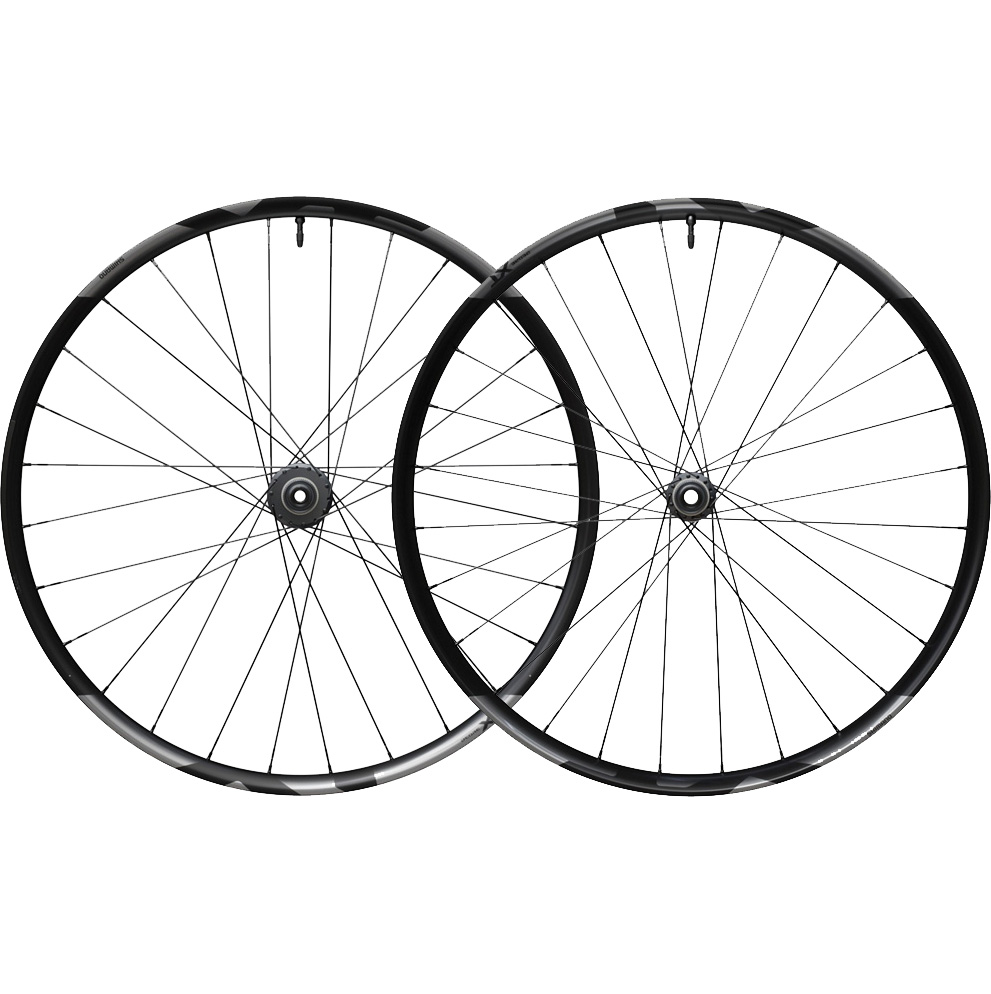

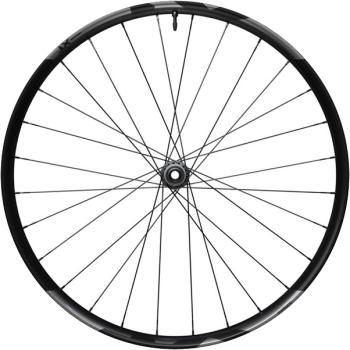

Durable wheels designed for all trail riders, built around SHIMANO's 30-millimeter alloy tubeless rim, laced with stainless steel spokes, and spinning on redesigned, higher-performing DEORE XT hubs. Available in 27.5 or 29-inch, with CENTER LOCK brake mounts, MICRO SPLINE compatible.
Durable Construction: Balanced compliance and stiffness for a responsive, reliable ride.
Versatility: Choose from 27.5- or 29-inch rims, both with 110x15 front hub boost spacing and conventional 28H structure, for a one-wheel-fits-all option.
- Cartridge Bearings: DEORE XT hubs are now available with easily serviceable cartridge bearings.
- Rotation: Cartridge bearings, optimized seal designs, and preload adjust keep the WH-M8200 consistently rolling smoothly.
- Model No: WH-M8200-TL-F15-B-29
- Series: DEORE XT
- Brake type: CENTER LOCK disc brake
- Wheel size: 622 x 30TC (29 inch)
- Tire: Tubeless ready
- Recommended size: 29 x 2.30 - 2.60

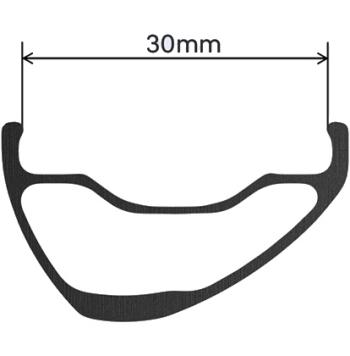

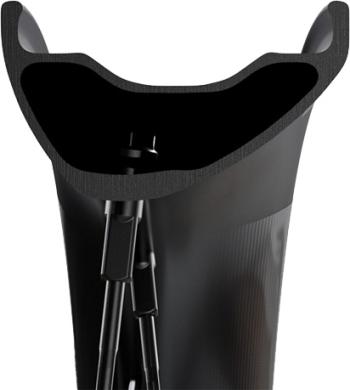

- Rim: Height: 19.8 mm, Internal width: 30 mm, External width 34.7 mm
- Rim joint: Welded
- Requires rim tape: 30-622
- Spokes: 28
- Diameter 2.0-1.8 mm

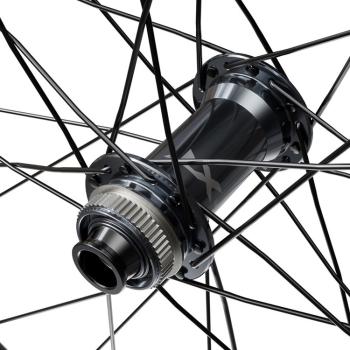

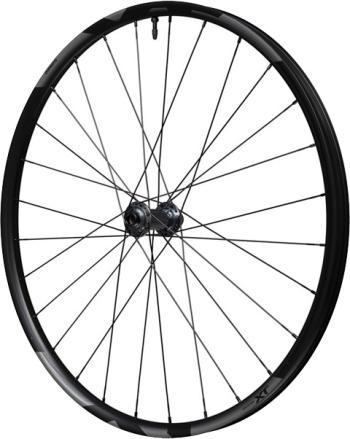

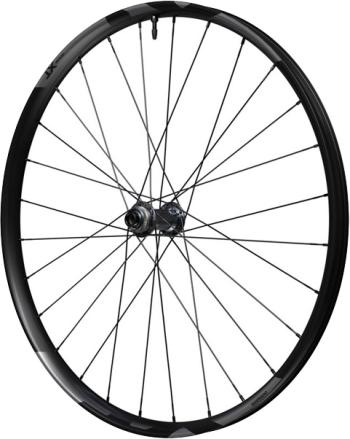

Front:
- O.L.D.: 110 mm
- Axle fixing method: 15 mm E-THRU
- Average weight: 931

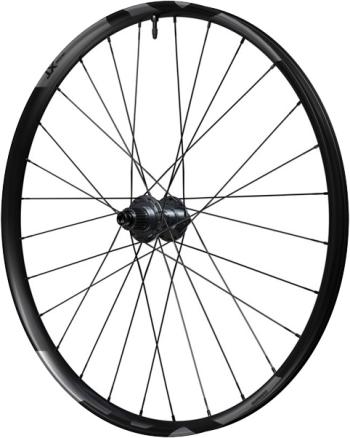

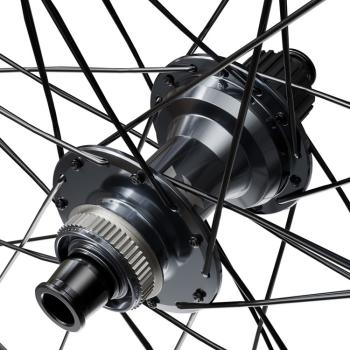

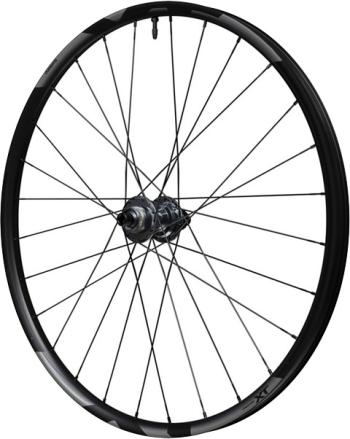

Rear:
- Rear speeds: 12
- O.L.D.: 148 mm
- Spokes: 28 J-bend
- Axle fixing method: 12 mm E-THRU
- Spline type: MICRO SPLINE
- Engagement type: Direct engagement
- Quick engagement: (max 3.5 deg.)
- Seal: Hub: Labyrinth+Contact, FREEHUB body: Labyrinth+Contact
- Average weight: 1052
