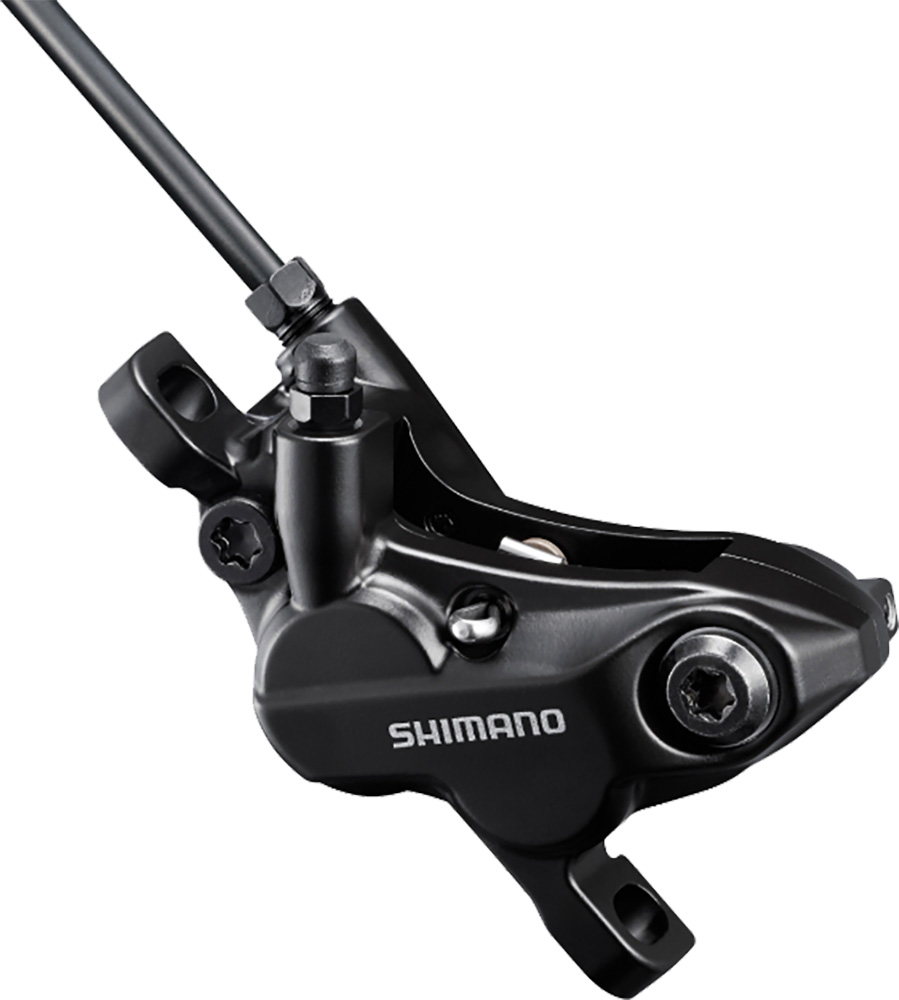

Shimano Black Shimano Deore MT520 hydraulic disc brake caliper 2024

Hydraulic Disc Brake Caliper. 4-piston. MTB. With a strong, 4-piston design, the SHIMANO MT520 hydraulic disc brake boosts rider confidence and enjoyment.

• Servowave
• One Way Bleeding
• High power brake performance boosts rider confidence and enjoyment
• Wider contact area of dual diameter opposed-piston design
• Four Piston Caliper
• Highly responsive braking power for greater control
• Rapid initial pad contact and controllable brake power modulation
• Stable braking and greater durability
• Sleek and durable master cylinder design
• Heat insulated pad and piston
• Brake hose: SM-BH90-SS
• Hose joint: Straight

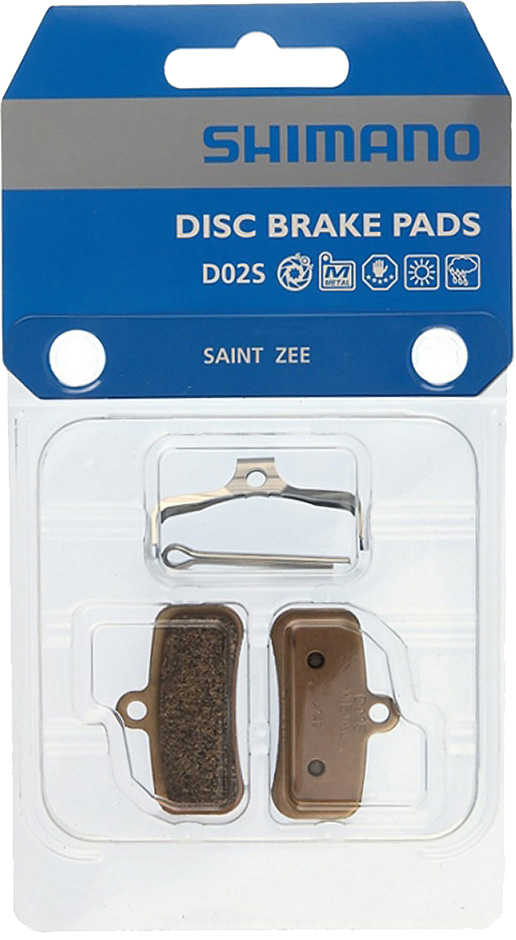

• Pad: D03S-RX Resin (w/o fin), D02S-MX Metal (w/o fin)
• Recommended brake lever: BL-MT501
• Recommended disc brake rotor: SM-RT70
• Compatible rotor size: 140 mm (SS). 160 mm (S), 180 mm (M), 203 mm (L), 220 mm (LL)
• Oil: SHIMANO mineral
• Mount type: Post type
