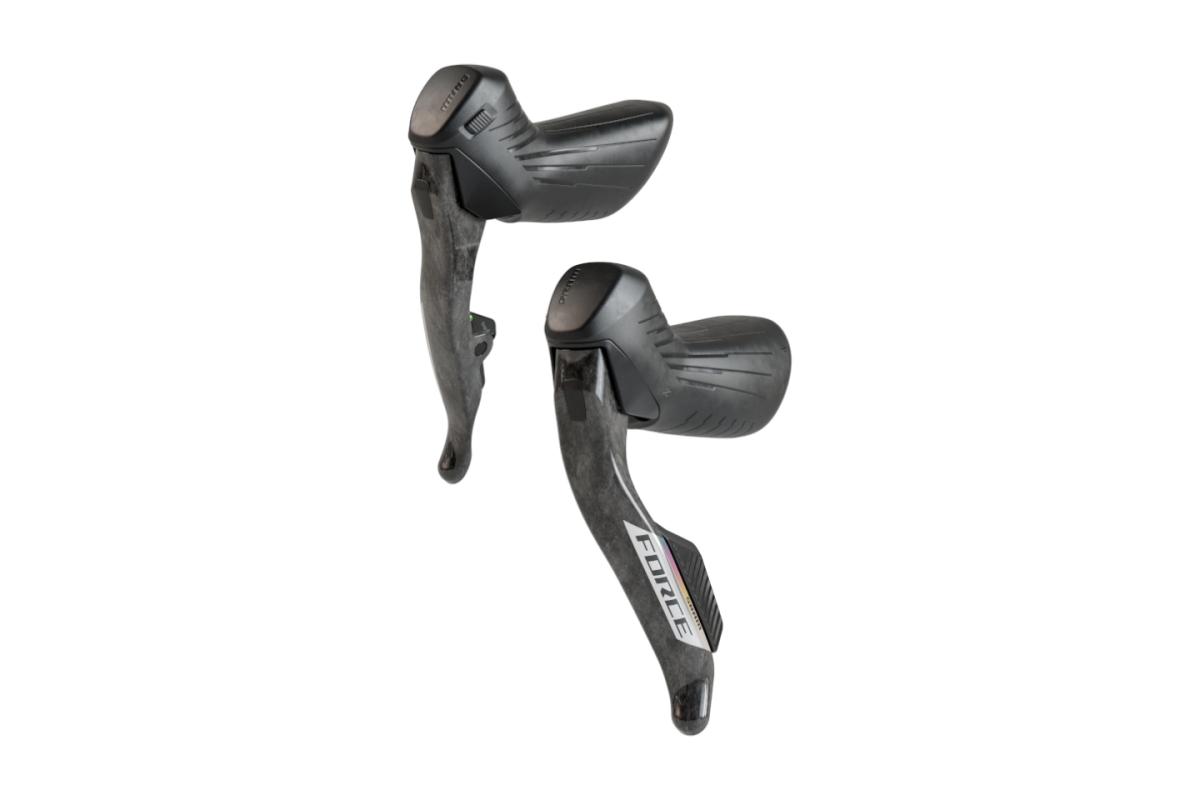

Force AXS HRD Shift-Brake System
One of the most important developments of the current Force AXS generation is the completely redesigned shift-brake lever. The ergonomics have been refined to provide a more natural grip for a wider range of hand sizes, while requiring less effort when braking.
Thanks to the stiffer brake calipers and the new lever shape, powerful braking can be controlled with just one finger, both from the hoods and the drops. The carbon brake lever keeps weight low, while the textured surfaces provide a secure and comfortable grip.
The Bonus Buttons located on the tops of the hoods can be used as additional shift buttons or to control compatible ANT+ devices.
Features
- One-finger braking from the hoods or the drops
- AXS wireless setup and personalization
- eTap shift logic for intuitive shifting
- Bonus Buttons for ANT+ device control or auxiliary shifting
- Optimized hood shape designed to fit a wide range of hand sizes
- Lightweight carbon brake levers
- Textured shift paddles and hoods for improved control and comfort
- Bleeding Edge technology
- Reach Adjust for personalized lever positioning

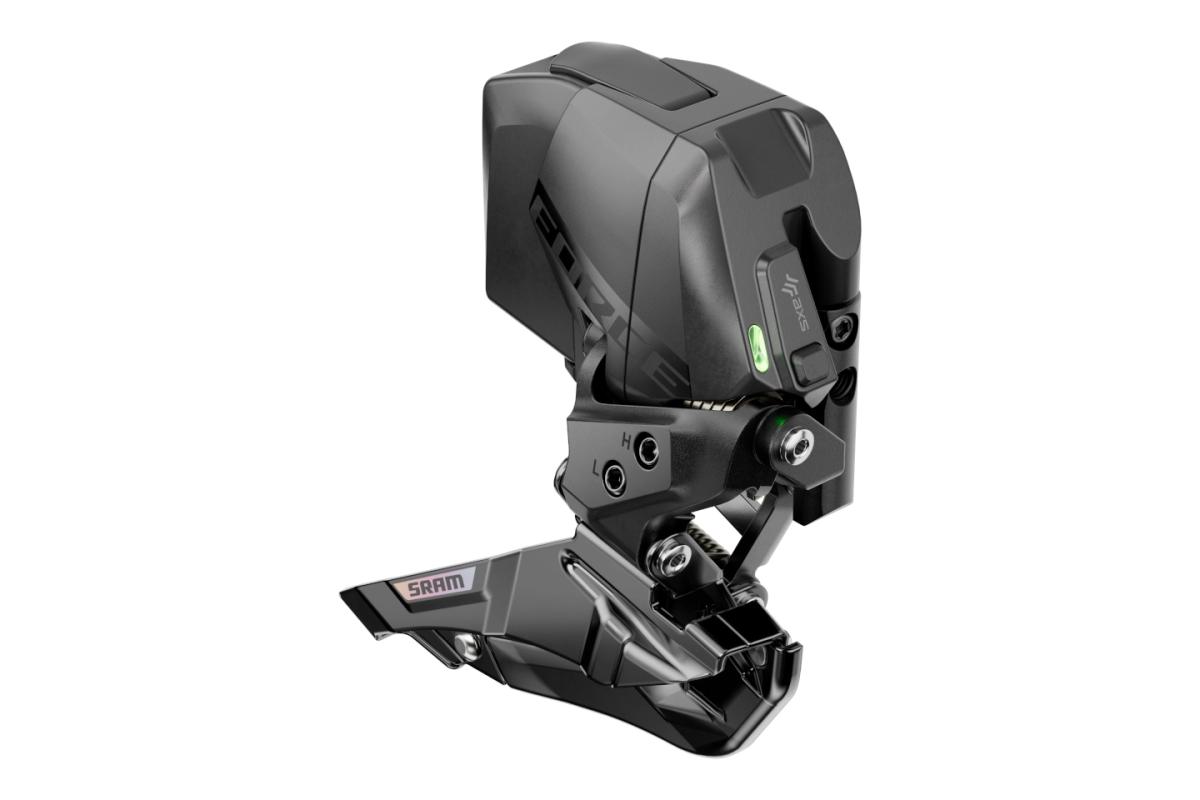

Force AXS Front Derailleur
The Force AXS front derailleur is designed not only for faster and more accurate front shifting, but also for quiet operation. The narrower cage travels a shorter distance during shifts, resulting in faster response, especially when shifting under high power.
SRAM Yaw technology aligns the cage with the chain line, while automatic trimming helps the drivetrain run smoothly and quietly throughout the entire gear range.
Features
- Compatible with 46/33T, 48/35T and 50/37T chainring combinations
- Fast and precise front shifting
- Easy setup with the included alignment tool
- SRAM Yaw cage technology
- Automatic trim functionality
- AXS wireless setup, monitoring and personalization

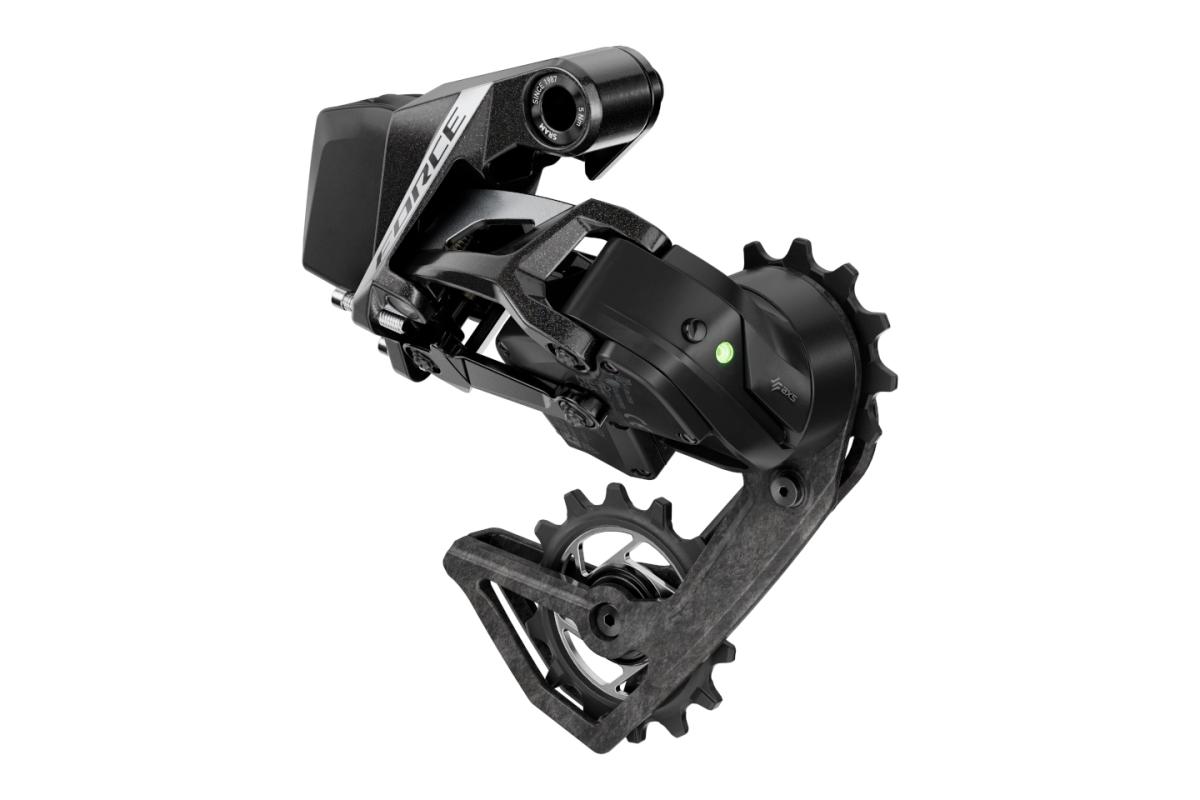

Force AXS Rear Derailleur
The Force AXS rear derailleur is designed to work with both 1x and 2x road drivetrains and cassette ranges from 10-28T up to 10-36T. Its redesigned, lighter cage and larger X-SYNC pulley wheels help improve drivetrain efficiency.
Chain management technology keeps the drivetrain quiet and secure even on rougher roads, while the AXS system provides fully wireless setup and personalization.
Features
- Compatible with both 1x and 2x drivetrains
- Compatible with cassette ranges from 10-28T to 10-36T
- Larger X-SYNC pulley wheels for increased efficiency
- Stable and quiet chain management
- AXS wireless setup and personalization

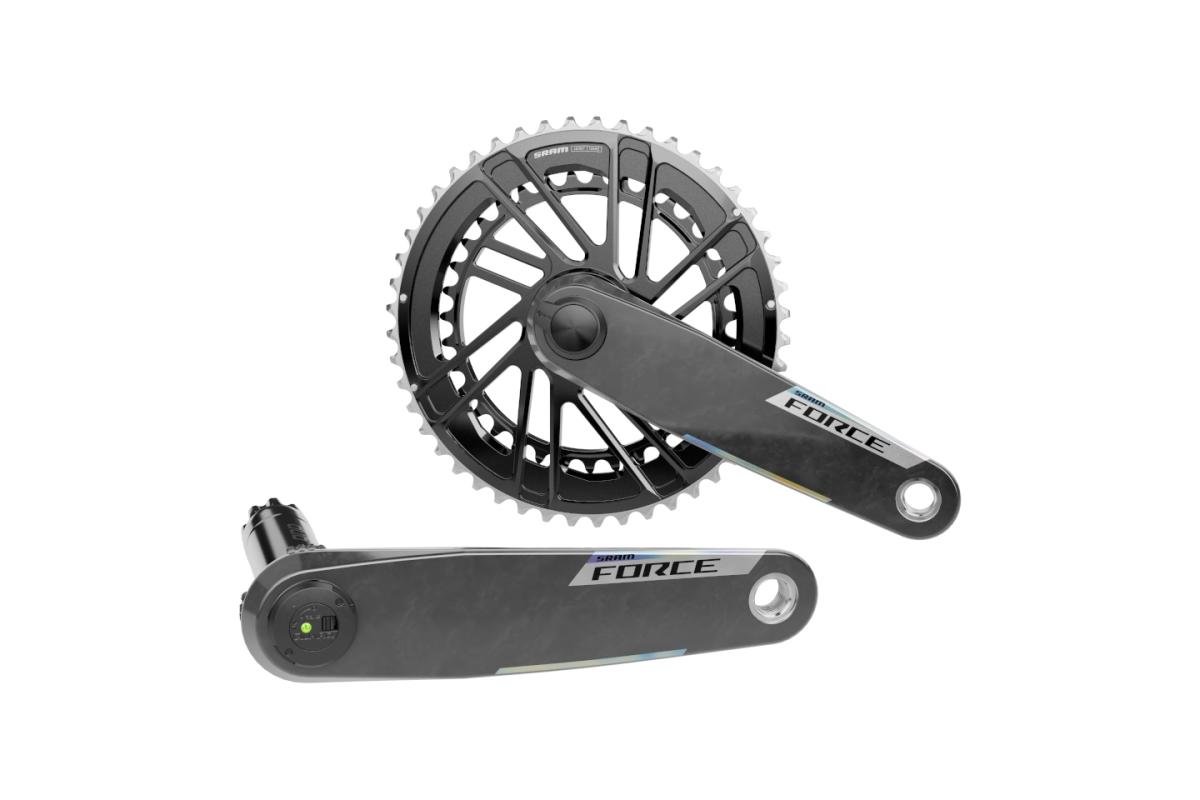

Force AXS Power Meter
The Force AXS power meter builds on the technology of the RED AXS integrated power meter while offering greater customization and serviceability at Force level.
The power meter is fully integrated into the chainring assembly, delivers accuracy within ±1.5%, and measures right-left power balance. Thanks to the Thread Mount design, the chainrings can be replaced separately.
Features
- ±1.5% power measurement accuracy
- Measures right-left leg power balance
- Thread Mount chainring system
- X-Range gearing technology
- 46/33T, 48/35T and 50/37T options
- Available in 160, 165, 170, 172.5 and 175 mm crankarm lengths
- DUB bottom bracket system

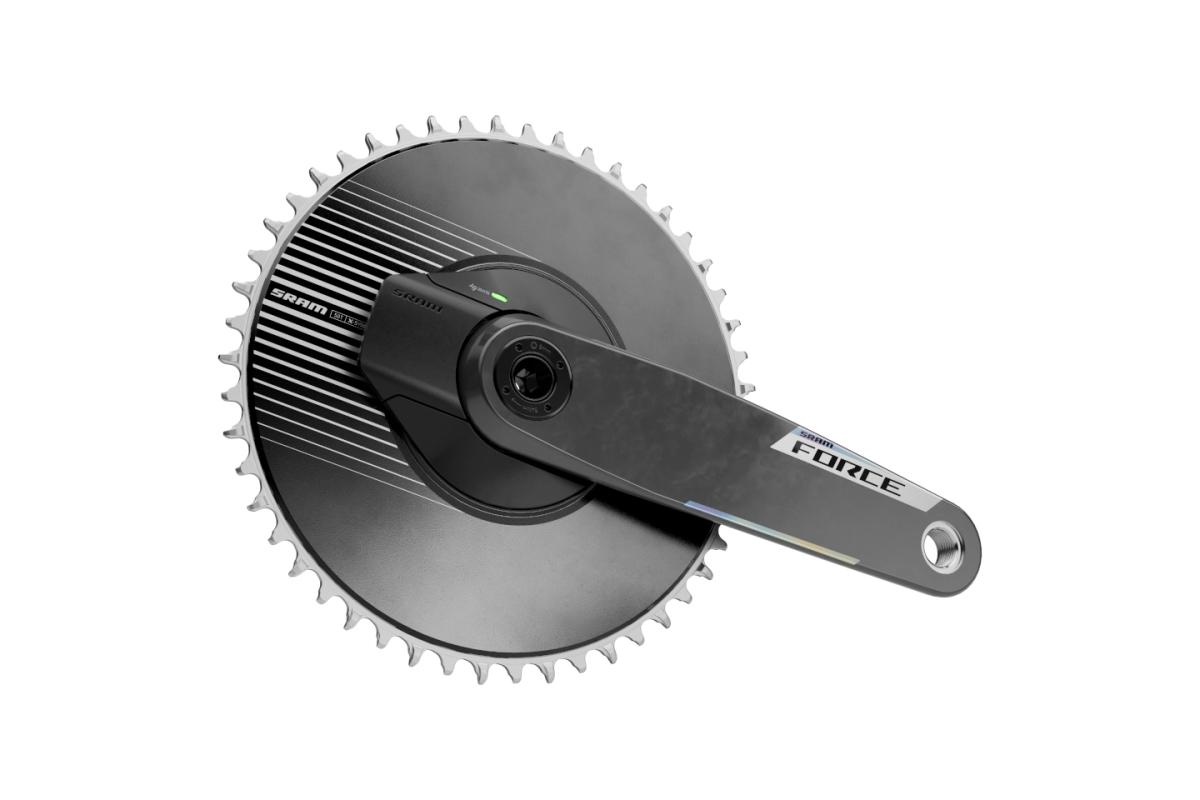

Force 1 AXS Power Meter
The single-chainring Force 1 AXS power meter combines the simplicity, low weight and stiffness of a 1x drivetrain with precise power measurement. The integrated design delivers ±1.5% accuracy, while the Direct Mount X-SYNC chainring provides excellent chain retention and an aerodynamic profile.
Features
- Integrated power measurement
- ±1.5% measurement accuracy
- Measures right-left leg power balance
- Direct Mount X-SYNC chainring
- DUB bottom bracket system
- Available in crankarm lengths from 160 to 175 mm

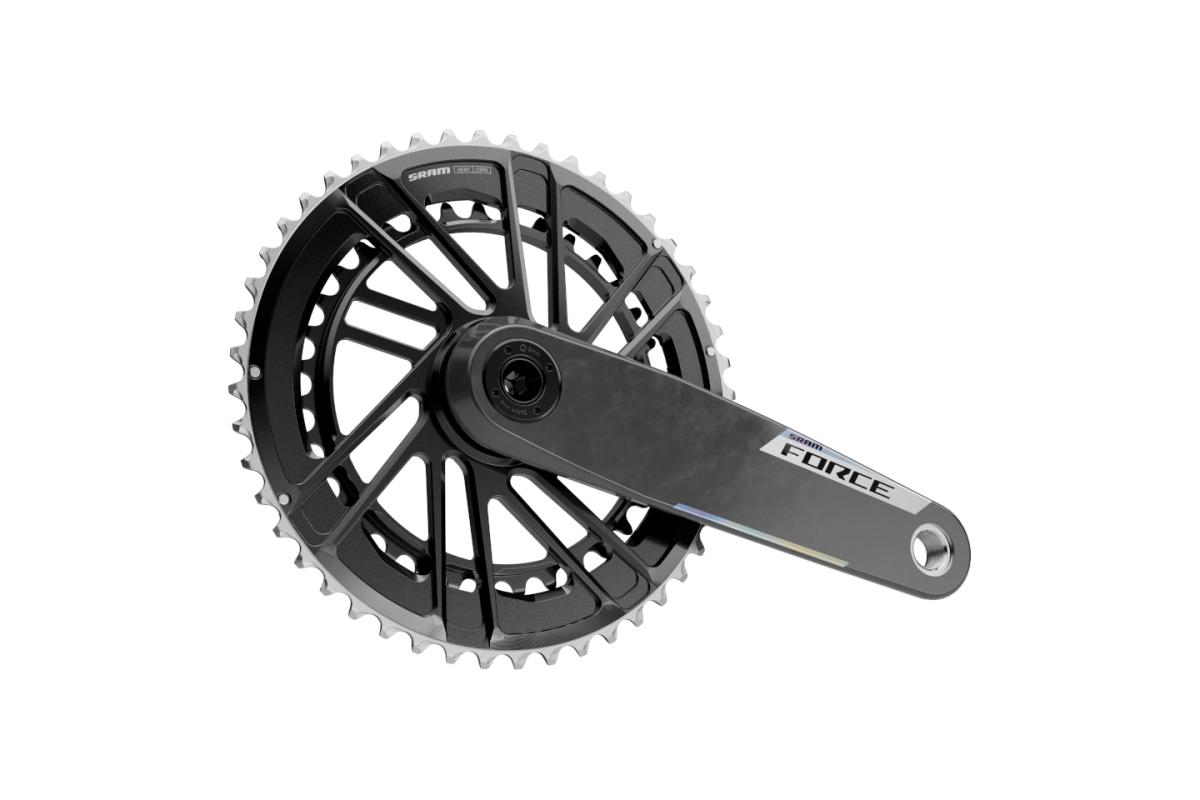

Force Crankset
The lightweight and stiff carbon Force crankset is available with 46/33T, 48/35T or 50/37T chainring combinations. X-Range gearing reduces the change in cadence when shifting between the front chainrings, making it easier to maintain a smooth and efficient pedalling rhythm.
Features
- One-piece 2x chainring construction
- X-Range gearing technology
- Fast and accurate front shifting
- 46/33T, 48/35T and 50/37T combinations
- Upgradeable with a power meter
- Available in crankarm lengths from 160 to 175 mm

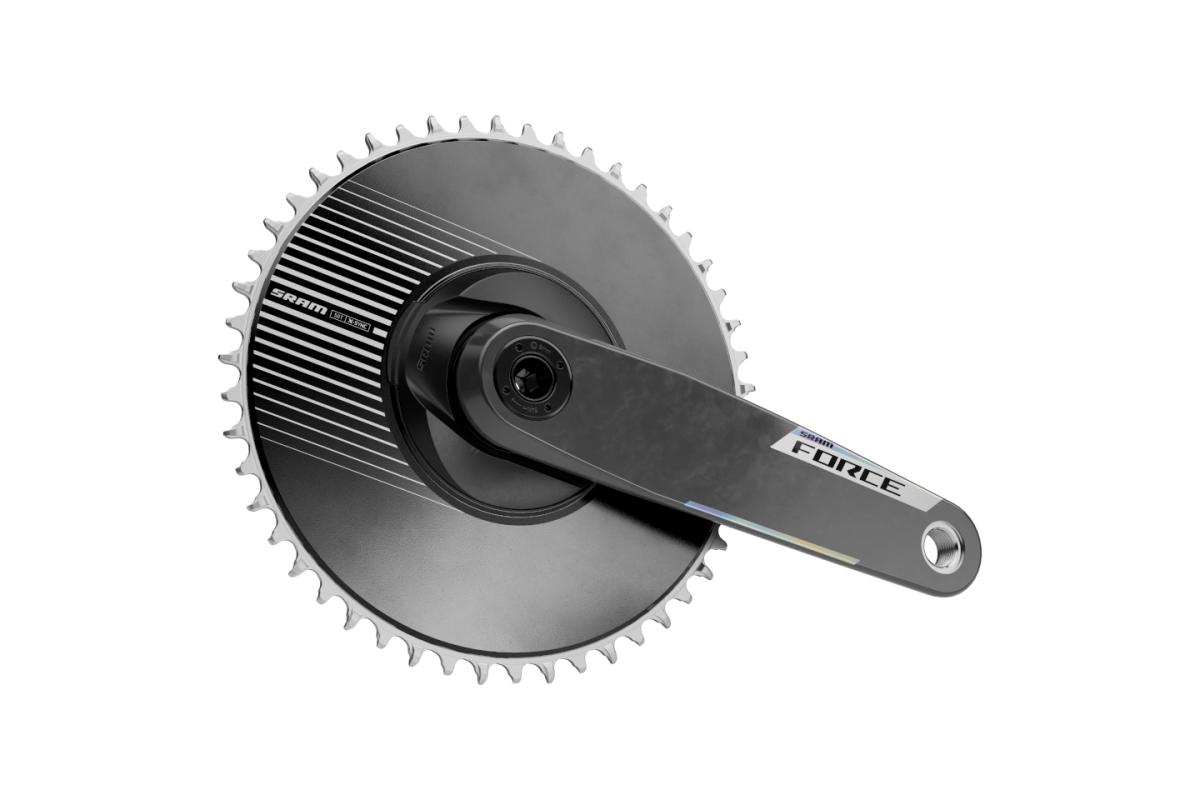

Force 1 Crankset
The single-chainring Force 1 crankset combines lightweight carbon crankarms with an aerodynamic Direct Mount chainring. The 1x design provides a simpler and lighter drivetrain, while the X-SYNC tooth profile keeps the chain securely in place.
Features
- Single-chainring design
- Lightweight carbon crankarms
- Aerodynamic Direct Mount chainring
- X-SYNC tooth profile for secure chain retention
- Upgradeable with a power meter
- Available in crankarm lengths from 160 to 175 mm

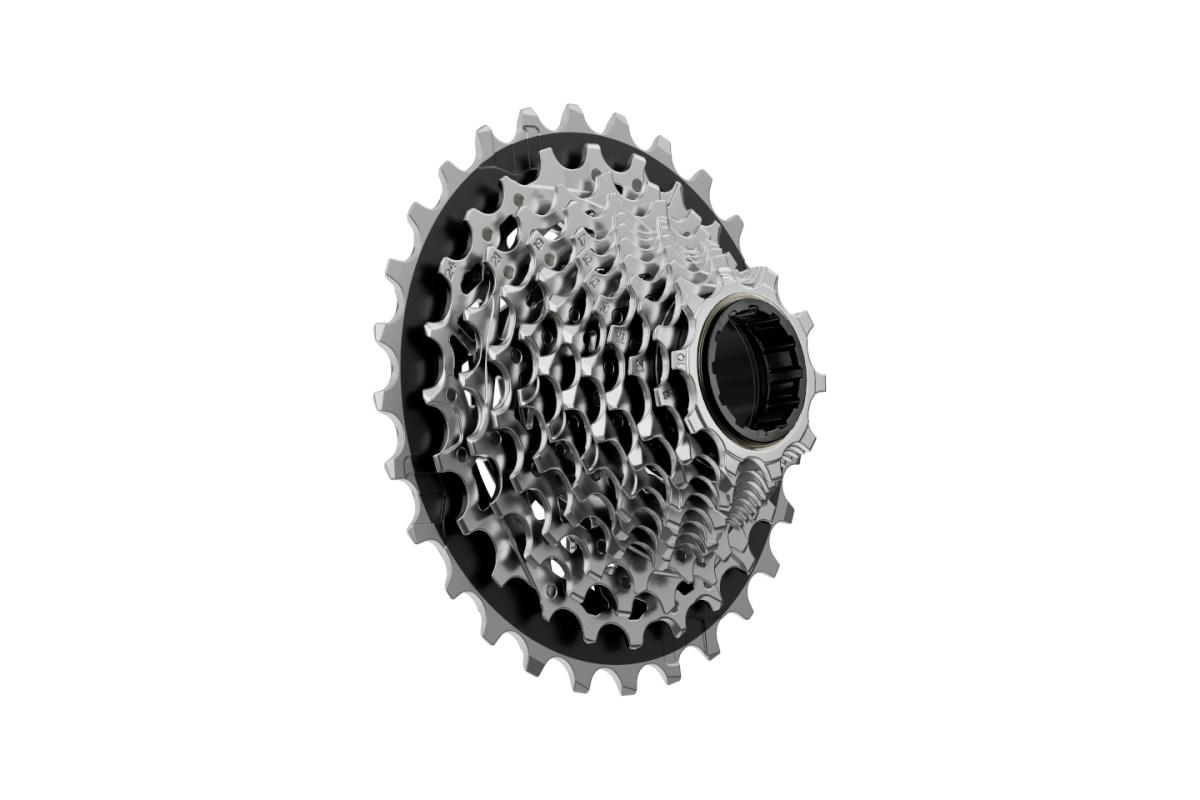

Force XG-1270 Cassette
The 12-speed XG-1270 cassette is available in four different ranges, providing options from closely spaced road gearing to the wider 10-36T version designed for steeper climbs.
The 10-tooth smallest sprocket is one of the key elements of SRAM's X-Range gearing philosophy, allowing smaller chainrings to be used without sacrificing the highest gear. Smaller steps between the higher gears also help riders maintain a smooth and consistent cadence.
Features
- 12-speed design
- Available in 10-28T, 10-30T, 10-33T and 10-36T versions
- X-Range gearing technology
- FULL PIN construction
- Matte nickel-chrome finish
- Compatible with XDR freehub bodies

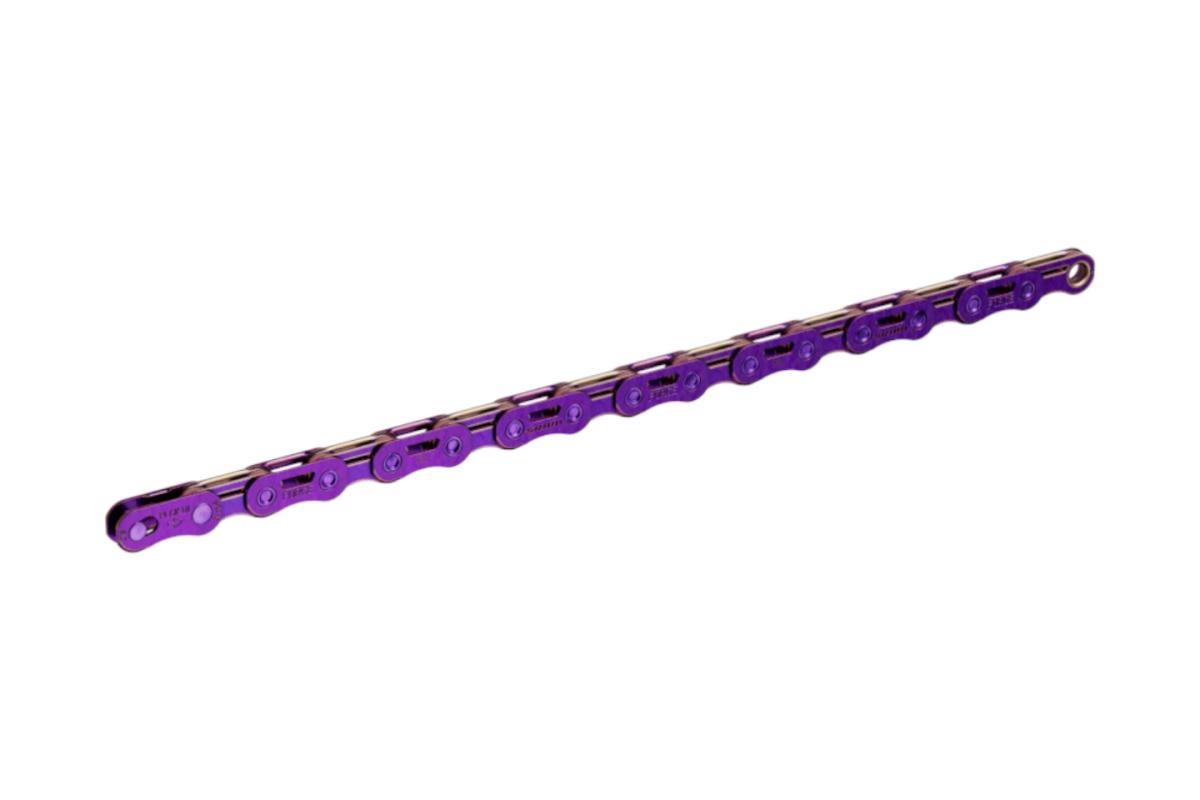

Force Chain
The distinctive Flattop design of the Force chain allows for a narrower construction while maintaining high levels of strength and durability. Hard Chrome inner links and rollers help reduce wear, while weight-saving cut-outs reduce overall mass.
Features
- Flattop technology
- Hard Chrome inner links and rollers
- Weight-saving cut-outs
- Compatible with 12-speed road and 13-speed XPLR AXS drivetrains
- Flattop PowerLock connector
Paceline Brake Rotor
The Paceline brake rotor follows the clean design language of SRAM's AXS road groupsets. Its braking surface is designed to provide smooth and quiet braking, while the lightweight aluminium carrier reduces weight compared with the previous generation.
Features
- Designed specifically for road use
- Paceline braking surface for smooth and quiet operation
- Lightweight aluminium carrier
Groupsets and Upgrade Kits

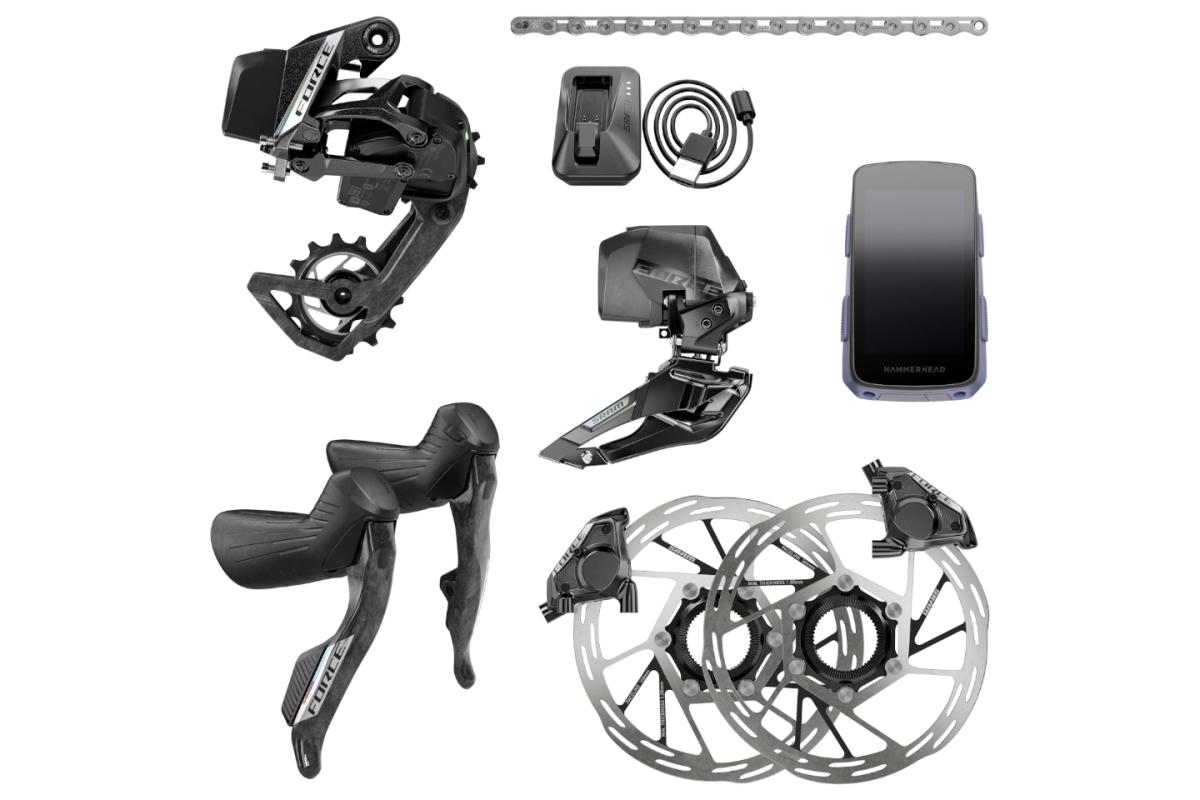

Force AXS Groupset
Force AXS combines fully wireless technology, refined ergonomics, effortless braking and advanced AXS integration. The current generation also delivers significant weight savings compared with the previous Force groupset while retaining the wide-ranging compatibility that has become a defining feature of the Force platform.
Force AXS Upgrade Kit
The upgrade kit provides a straightforward option for riders who primarily want to benefit from the improved ergonomics and control of the latest Force AXS shift-brake levers. The package includes a Hammerhead Karoo cycling computer, right and left Force AXS shift-brake levers and flat mount brake calipers.
Features
- Hammerhead Karoo cycling computer
- Right and left Force AXS shift-brake levers
- Flat mount brake calipers
- Compatible with all generations of AXS derailleurs

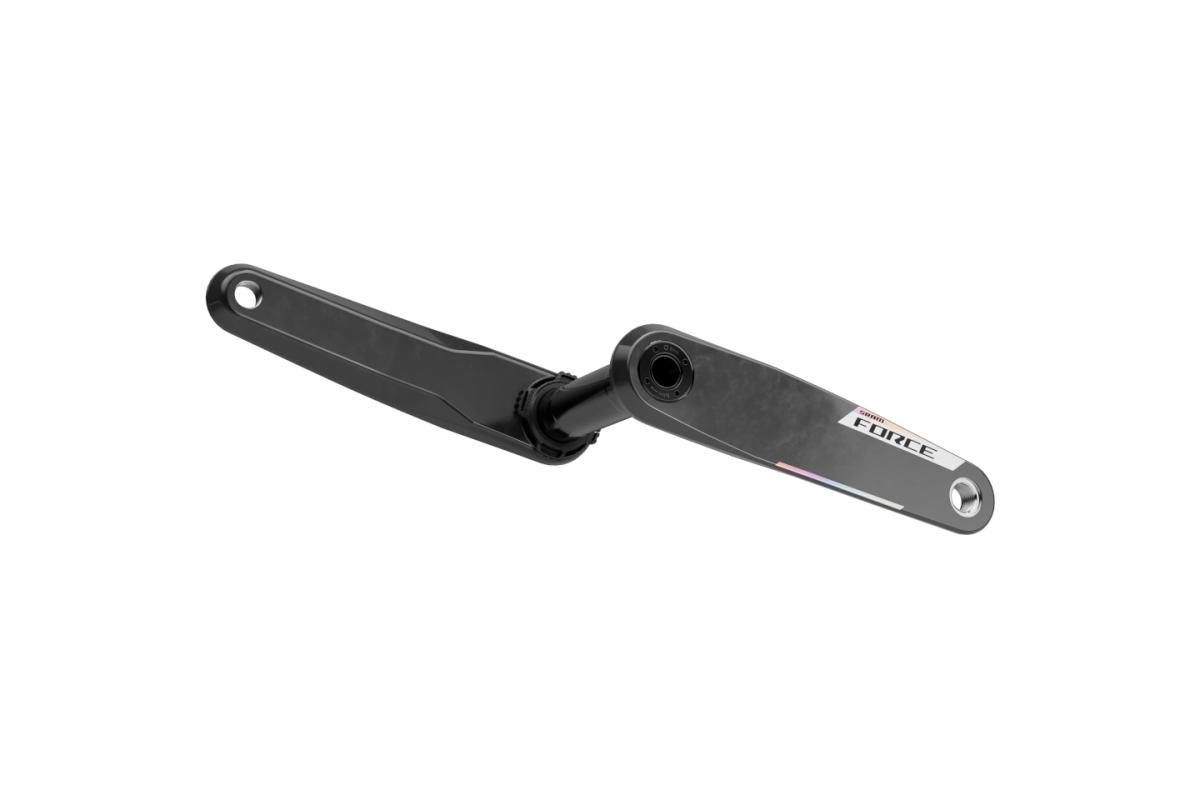

Force AXS Power Meter Upgrade Kit
The Force AXS power meter upgrade provides a simple way to add power measurement to a compatible existing crankset. Based on Quarq technology, the spindle-based system measures power from the left side and uses this data to calculate total power output.
Features
- Quarq power measurement technology
- Long battery life
- IPX7 water resistance
- Spindle-based unit measures left-side power and calculates total wattage
Chainrings
Force 2x Chainring Set
The Force 2x chainring is manufactured as a single integrated unit, providing low weight, high stiffness and precise shifting performance.
- Fast and accurate front shifting
- One-piece construction
- X-Range gearing technology
- Available in 46/33T, 48/35T and 50/37T versions
Force Thread Mount 2x Chainring Set
The Thread Mount system combines low weight and high stiffness while helping maximize power meter accuracy. The chainrings can be replaced separately using the appropriate SRAM Thread Mount tool.
- Lightweight and stiff threaded mounting system
- 46/33T, 48/35T and 50/37T combinations
- Compatible with Flattop road chains
- SRAM Thread Mount tool required for installation
Force Crankarm Set
The Force carbon crankarms provide a lightweight and stiff construction and are available in lengths from 160 to 175 mm, as well as in standard and wide Q-factor versions. The eight-bolt interface is compatible with AXS power meter and non-power meter spiders, as well as integrated chainring systems.
- 8-bolt AXS interface
- DUB spindle system
- Lightweight and stiff carbon crankarms
